How to control a lamp via Arduino

Magnetic_dudArduino

In the last posts I wrote that I bought a lot of Arduino stuff, to try to build something interesting, but I didn’t show anything.

This is the first example, the easiest: how to control a lamp.

Ingredients:

The circuit and the code it’s super easy and it’s on GitHub.

Code explanation:

  1. in setup() we declare that pin 7 is an output
  2. in loop() we turn on pin 7
  3. We wait 10000 milliseconds (10 seconds) before running next instruction
  4. We turn off pin 7
  5. We wait another 100000 milliseconds
  6. We start again from point 2

The result is that we have turn on and off the lamp every 10 seconds.

Obviously, this is an useless circuit, but we can expand it, for example by controlling the lamp via Bluetooth or via WiFi.

The real flick keyboard

Magnetic_dudArduino

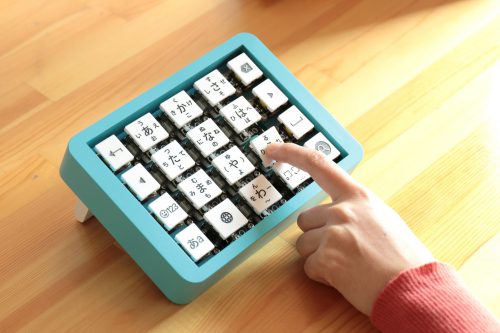

As an April Fool’s Google Japan made a Flick physical keyboard.

usecase

Designed for those who, accustomed to a flick keyboard on Android / iOS, is no longer able to use one for traditional computers. The website introduces it very well, even though he exaggerates with the functionality, with a laser tracking system that would look unrealistic even in science fiction movies.

What’s really interesting thing is that they made available the source code: one could actually make this keyboard at home with Arduino, although it lacks a fundamental thing: the files for the 3D printer. Yes, I can recreate it at home, but the little box and cute keys? You have to design them yourself.

With the “recipe” that have published, what comes out is something like this:

device

Which it is quite different than the cool prototype shown in the video.

However, it works. With 12 analog nubs from a PS2 pad, they convert the 24 analog inputs to digital using three MCP3208 ICs, using only 5 digital inputs on the arduino nano, while the nub click is directly connected to the remaining 12 digital/analog inputs. After that, the program communicates via serial port with a card, and is seen as a bluetooth keyboard.

Despite the cool looking prototype, in my opinion it’s actually awkward to use. If each key is using a PS2 analog stick, the click is much harder than one key on a standard keyboard, ok, maybe you can write a sentence, but a longer text? Best wishes!
